Charging Adapter for Ultra Micro LiPos
Charging Adapter for Ultra Micro LiPos
  (Enlarge)

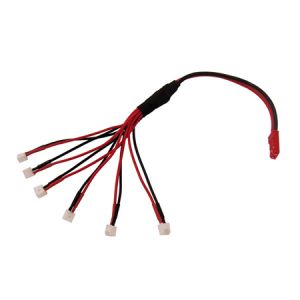

 MICRO-6 Common Sense RC Charging Adapter for Ultra Micro LiPos. Stop spending so much time charging, and spend more time flying!
 With the Micro-6 you can charge up to six Ultra Micro lipos at one time! This adapter is designed to allow you to connect Ultra Micro 1-cell batteries via a JST connector to the LiPo charger of your choice.
 The adapter connects them in parallel, accommodating batteries of different capacities. By charging in parallel the only requirement is that all cells must be near their normal discharged state before connecting together and consequently charging. You have complete control over the charge rate, allowing you to choose a safe 1-hour charge for max battery life.
 The adapter simply allows you to connect up to 6 batteries in parallel so that you can charge them as a single larger mAh single cell battery. The only requirement is that all the batteries be reasonably close in charge level.
 For example, if you either time your flights or fly till cutoff. You want to avoid connecting a fully charged battery to a group of discharged cells, since a rapid rush of current would occur.
 As you plug in the batteries they will be tied together and will self balance. Then connect the JST connector to your existing charger that supports 1 cell (1s) charging and set the charge mA to the sum total of the mAh rating for each cell. You can even mix 70mAh with 110mAh, 150mAh, 250mAh and so on. Since they all receive the same voltage each cell only takes the mA it needs to charge to 4.2 volts max.
 For example: If you have a 70mAh and three 110mAh batteries you would set your charger to 70+110+110+110= 400mA. At this current they will charge at the safe 1 hour rate.

 - The Micro-6 allows you to use any lithium battery charger that supports 1S (3.7V) Lithium batteries via a standard JST connector to charge Ultra Micro lipos
 - Designed for use with Ultra Micro lipos utilizing the Parkzone/E-flite Blade mCX-style micro connector
 - Compatible with batteries used in the ParkZone Vapor, Ember/2, Sukhoi, P-51, and J-3 Cub as well as E-flite's Blade Scout CX, mCX, S300, MSR, Tandem Rescue and Ultra-Micro 4-Site

 Note: Requires EFLA7002UM Ultra-Micro Battery Adapter Leads for use with Blade mCP X


Our Price: $10.95


« Previous | Next »

Related items to consider:

1s High Current Ultra-Micro Battery Adapter Lead


Our Price: $3.49
