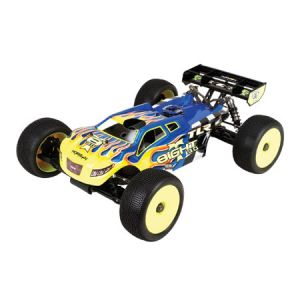

TLR04001 Team Losi Racing 8IGHT-T 3.0 Race Kit: 1/8 4WD Nitro Truggy. A great truggy starts with a great buggy. The 8IGHT-T™ 3.0 truggy benefits from the same engineering and expertise that made the 8IGHT™ 3.0 buggy a ROAR National Champion.
 Everything from the suspension geometry to the body and wing design has been refined so it is easier for racers of all skill levels to drive faster and lower lap times. This superb handling, combined with ability to handle the most powerful engines and toughest tracks, make the 8IGHT-T 3.0 truggy a true contender for the world stage.

Improved Suspension Geometry
 The suspension geometry is refined to give racers of all skill levels a neutral handling truggy that is easy to drive fast. 15-degree, non-inclined caster blocks raise the spindle, allowing the vehicle to soak up bumps with less dog bone plunge. Redesigned front arms improve front wheel clearance and increase steering throw. Camber and shock locations on the shock towers are optimized for quick and easy tuning.

16mm Shocks and Tapered Springs
 The large bore shocks are easier to tune and include machined tapered pistons and shock bushings for greater precision. The tapered shock springs provide more spring-to-arm clearance and a progressive rate that keeps the ride plush over rough sections of track while still providing plenty of bottoming resistance for landing large jumps. Larger volume bladders with improved durability are also included.

Optional Parts Included
 The kit comes with an impressive collection of optional parts that includes lightweight outdrives, a lightweight spur gear, adjustable hinge pin braces, a hard-anodized flywheel, an aluminum servo saver top, aluminum rear bearing inserts and more.

Gen 3 Radio Tray
 The Gen 3 Radio tray provides better weight distribution and helps prolong servo life with molded index points that improve linkage alignment. A ball bearing-mounted throttle tri-horn keeps engine response smooth and precise. The switch location has been moved for easier access and the metal J-nut that secures the battery box reduces wear on the radio tray from chassis flex.

Improved Body and Wing
 The body is a refined version of the revolutionary 8IGHT-T 2.0 truggy’s cab forward body. It’s complemented by a new rear wing with larger side plates that improves air flow and provides greater down force. An optional wickerbill system is included so you can fine-tune stability for different track conditions.

 - Improved Suspension Geometry
 - 16mm Shocks and Tapered Springs
 - Optional Parts Included
 - Gen 3 Radio Tray
 - Improved Body & Wing
 - Front and Rear, Center Dogbone
 - Adjustable Aluminum Front and Rear Pivots With Inserts
 - Aluminum Top Servo Saver
 - Brake Caliper Springs
 - Aluminum Bearing Inserts
 - Lightweight Outdrives
 - TiCN Shock Shafts and Hinge Pins
 - Ball Bearing Steering Rack
 - Rear Ring and Pinion Gear
 - Improved Droop Screws
 - Metal Servo Inserts

Type: 1/8th Nitro Truggy
Scale: 1/8
Length: 18.75 in (476mm)
Width: 16.38 in (416.1mm)
Height: 7.30 in (185.5mm)
Wheelbase: 14.93-15.09 in (379-383mm)
Chassis: 4mm Plate, 7075-T6 Aluminum
Suspension: 4-wheel Independent
Drivetrain: 4WD
Motor or Engine: .21-.28 Nitro Engine
Gear Pitch: 1.0 MOD
Kit/RTR: Kit
Shock Type: 16mm bore with Bladders
Body: 8IGHT-T 3.0 Body
Ball Bearings: Full Precision Ball Bearings
Fuel Tank Capacity: 150cc
Experience Level: Intermediate
Assembly Time: 3-5 Hours

You will need:
 - .21- or .28-Size Nitro Engine
 - 1/8-Scale Exhaust System
 - 2- to 3-Channel Radio System
 - Receiver Pack and Charger
 - Starter Box
 - Glow Igniter
 - Nitro Fuel
 - Fuel Bottle/Fuel Gun
 - Polycarbonate-Compatible Paint
 - Modeling Tools
 - 1/8-Scale Off-Road Truggy Tires, Wheels, and Inserts


*Images are used for illustrative purposes only, actual product may vary
